Researchers Consider Graphene as a Cure for Desalination Woes

Computer simulations indicate graphene desalination membranes could vastly outperform existing reverse-osmosis systems

Courtesy of the Massachusetts Institute of Technology (M.I.T.)

More In This Article

The earth harbors about 1.4 billion cubic kilometers of water. Unfortunately, the vast majority of that water comes from the sea and is not potable unless treated by expensive, energy-hungry desalination plants. Those problems stem largely from inefficiency in the way salt ions are separated from water molecules, and the solution, says a team of materials scientists from the Massachusetts Institute of Technology, lies in fundamentally revising that process.

The predominant desalination method today—reverse osmosis (RO)—relies on polymer-based membranes to remove salt and requires great pressure to push water through a semipermeable film.The more pressure applied, the higher the cost. The M.I.T. researchers, led by Jeffrey Grossman and David Cohen-Tanugi, propose that films made of graphene could filter out salt without inhibiting the water flow as much. Graphene, a superstrong sheet of carbon that is only one atom thick, has mostly been seen as a material for improving electronics and optical communications.

Reverse osmosis requires less energy than other desalination approaches—such as thermal distillation—but graphene membranes containing nanoscale pores that are more permeable than the polymers currently used would further cut energy requirements, the researchers reported online last month in Nano Letters.

The idea is to discriminate between water molecules and salt ions based on size. "Reverse osmosis uses size exclusion, except it excludes everything," says Grossman, an associate professor of power engineering.

A graphene membrane would provide well-defined channels that allow water molecules to flow through at lower pressures while blocking salt ions, Grossman says.

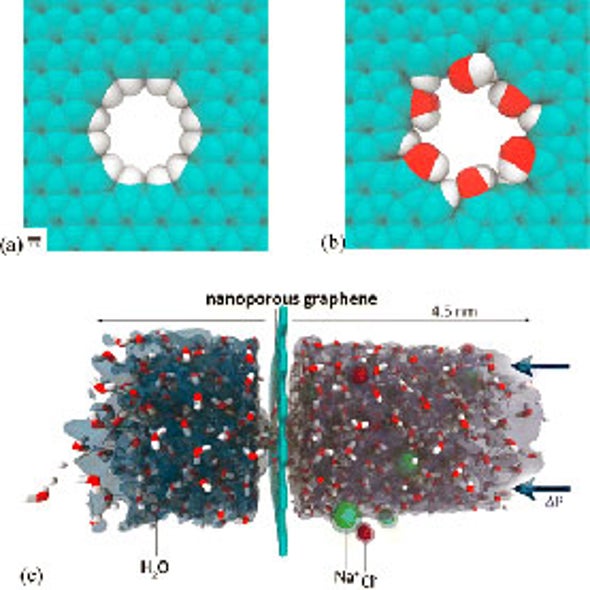

Using software simulations, the M.I.T. researchers experimented with different pore sizes to desalinate seawater with a salt concentration of 72 grams per liter, about twice the salinity normally found in the ocean. They found that, theoretically at least, pores 0.7 to 0.9 nanometer in diameter were most effective at passing water molecules while blocking sodium ions. "That's the sweet spot," Grossman says. "If it's bigger, salt's going to flow through. If it's smaller, nothing flows through."

Grossman and his team are trying to determine whether chemical reactions might be used to tweak desalination performance. The researchers programmed their digital graphene pores to be coated with either hydrophobic (water-repelling) or hydrophilic (water-loving) atoms. The former slowed the flow but cut down on the salt ions passing through, while the latter allowed faster flow but blocked fewer salt ions. The type of coating may ultimately depend on conditions at a given facility. Still, the scientists report, simulations indicate that graphene nanopores could reject salt ions with a water permeability two-to-three orders of magnitude higher than RO membranes.

Of course, working with graphene in reality is more challenging than filtering pixilated salt from digital water molecules on a computer. For starters, although chemical etching and ion beams can be used to create holes in graphene, it is difficult to produce holes of a specific size in an even configuration, Grossman acknowledges. Nor does graphene eliminate the quandary of how much leftover brine can be safely returned to the ocean without hurting underwater habitats. Toxicity could also be an important issue, he says, "although there are no real answers right now in terms of [graphene's] potential impact on [the safety of] drinking water."

Grossman does not know when graphene-based desalination might be ready for commercial use. He and his team, though, continue to run simulations and have begun testing actual membranes in the lab to study flow rates and salinity.

Demand for potable water is expected to escalate worldwide in the coming years. Grossman says the key to meeting that need is not necessarily tweaking existing technology. "We looked around at who's working on desalination in the scientific community, and it's mostly mechanical engineers working at the systems level," he says. "Little is being done on the system design side using basic science and working from the bottom up."
